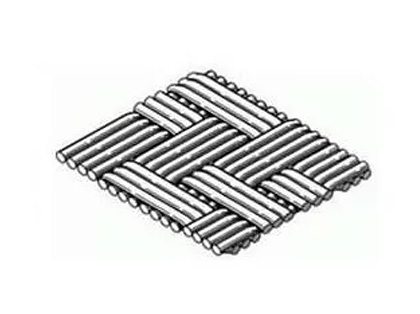

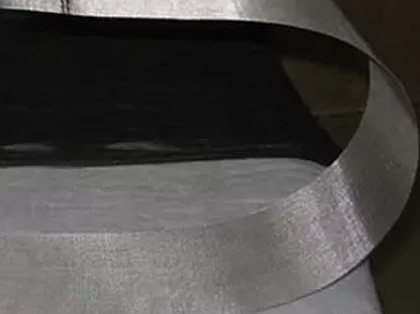

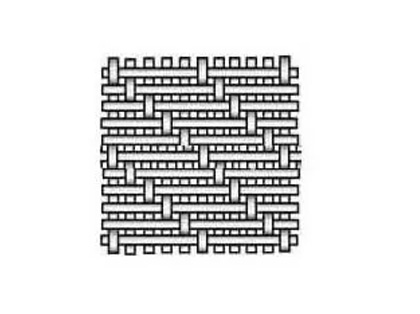

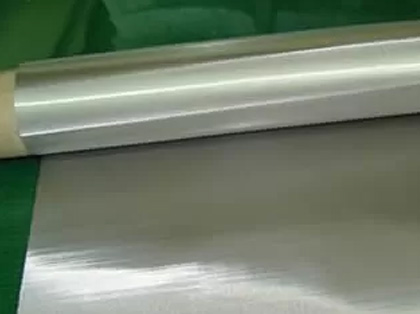

Five Heddle Woven Stainless Steel Wire Cloth has a smooth top surface and an open lower surface. It is ideal to withstand high mechanical strain and excellent filter performance.
Material: Stainless steel wire SUS304, SUS304L, SUS316 or SUS316L.

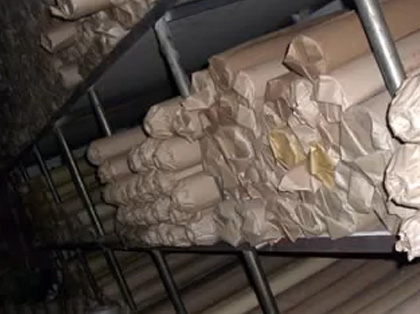

Packing: wrapped with moister-proof paper, then in wooden cases.
| Meshes per inch(25.4mm) Warp × Weft |
Wire Diameter(mm) | Aperture(mm) Warp × Weft |
Open Area% | Weight(kg/m2) |
| 108 × 59 | 0.160 | 0.075 × 0.271 | 20 | 1.07 |
| 110 × 60 | 0.160 | 0.071 × 0.263 | 19 | 1.09 |
| 38 × 38 | 0.150 | 0.518 × 0.518 | 60 | 0.43 |
